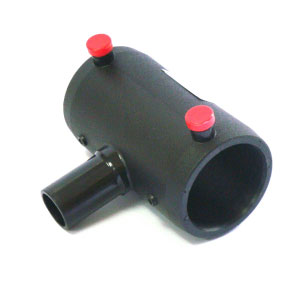

Tee 90° Reducing (PE Electro Fusion Fitting)

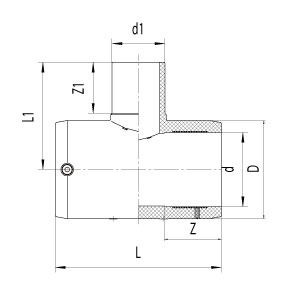

Spec.DN d x d1	D	Z	Z1	L1	L
40 X 32 X 40	55	36	45	80	119
50 X 32 X 50	66	50	45	85	131
50 X 40 X 50	66	50	50	90	139
63 X 32 X 63	82	58	45	92	144
63 X 40 X 63	82	58	50	98	152
63 X 50 X 63	82	58	56	105	160
75 X 50 X 75	98	63	56	113	200
75 X 63 X 75	98	63	64	121	200
90 X 50 X 90	117	70	56	122	225
90 X 63 X 90	117	70	64	130.5	198
110 X 63 X 110	142	72	64	145	210
110 X 90 X 110	142	72	80	163	232
160 X 90 X 160	203	90	80	193.5	274
160 X 110 X 160	203	90	83	193.5	290
180 X 90 X 180	223	95	79	204	365
180 X 110 X 180	223	95	82	207	365
180 X 125 X 180	223	95	87	212	365
180 X 160 X 180	223	95	98	223	365
200 X 90 X 200	250	103	79	220	400
200 X 110 X 200	250	103	82	223	400
200 X 125 X 200	250	103	87	228	400
200 X 160 X 200	250	103	98	239	400
200 X 180 X 200	250	103	105	246	400
All unit measurement are based on (mm)

Welding Voltage

40v

Pin Connection Diameter

4.0mm
