PE Electro Fusion Fitting |
 |

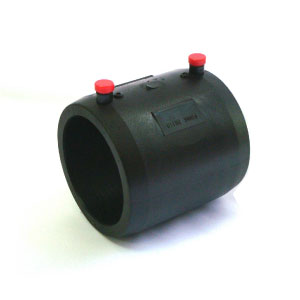

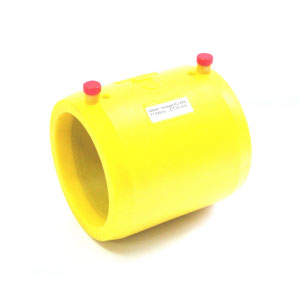

Coupler (PE Electro Fusion Fitting) |

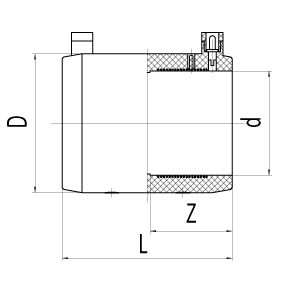

| Spec.DN d |
D | Z | L |
|---|---|---|---|
| 20 | 34 | 35 | 72 |
| 25 | 39 | 35 | 72 |
| 32 | 46 | 38 | 80 |
| 40 | 55 | 43 | 90 |
| 50 | 66 | 48 | 100 |
| 63 | 82 | 55 | 115 |
| 75 | 98 | 61.5 | 127 |
| 90 | 117 | 61.5 | 135 |
| 110 | 142 | 70.5 | 145 |
| 125 | 164 | 82 | 168 |
| 140 | 173 | 76 | 175 |
| 160 | 203 | 88 | 180 |
| 180 | 226 | 95 | 194 |
| 200 | 251 | 100 | 205 |
| 225 | 280 | 108 | 220 |
| 250 | 312 | 115 | 235 |
| 280 | 347 | 124 | 251 |
| 315 | 389 | 130 | 265 |
| All unit measurement are based on (mm) | |||
| Material | : | PE80 |
| Pressure | : | 1.25 Mpa (Water) 0.8 Mpa (Gas) |
| Material | : | PE100 |
| Pressure | : | 1.6 Mpa (Water) 1.0 Mpa (Gas) |
| Welding Voltage | : | 40v |
| Pin Connection Diameter | : | 4.0mm |
