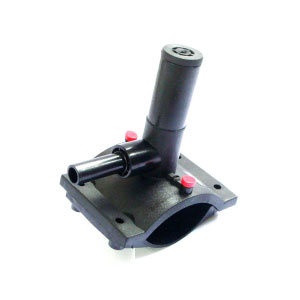

Tapping Saddle (PE Electro Fusion Fitting)

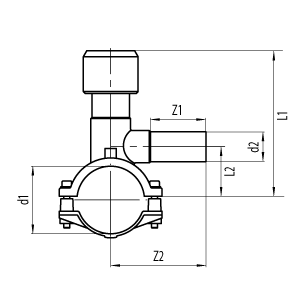

Spec.DN d1 x d2	Z1	Z2	L1	L2
40 x 20	68	110	120	37.5
40 x 25	68	110	120	37.5
40 x 32	70	112	120	37.5
63 x 20	68	114	170	52
63 x 25	68	114	170	52
63 x 32	69	115	170	52
63 x 40	72	119	170	52
63 x 50	80	140	198	61
63 x 63	80	140	198	61
90 x 20	70	123	186	71
90 x 25	68	121	186	71
90 x 32	68	121	186	71
90 x 40	74	127	186	71
90 x 50	80	139	215	79
90 x 63	81	140	215	79
110 x 20	68	126	204	83.5
110 x 25	68	126	204	83.5
110 x 32	70	128.5	204	83.5
110 x 40	74	132	204	83.5
110 x 50	79	143	230	93
110 x 63	81	145	230	93
125 x 20	68	128	237	98
125 x 25	68	128	237	98
125 x 32	70	130	237	98
125 x 40	73	133	237	98
125 x 50	79	148	260	103
125 x 63	81	150	260	103
140 x 20	68	134	249	110
140 x 25	68	134	249	110
140 x 32	70	136	249	110
140 x 40	73	139	249	110
140 x 50	79	154	270	113
140 x 63	81	156	270	113
160 x 20	68	134	260	120
160 x 25	68	134	260	120
160 x 32	70	136	260	120
160 x 40	74	140	260	120
160 x 50	79	155	282	125
160 x 63	81	157	282	125
All unit measurement are based on (mm)

Welding Voltage

40v

Pin Connection Diameter

4.0mm
