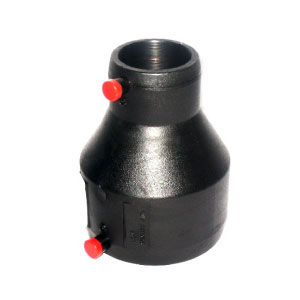

Reducer (PE Electro Fusion Fitting)

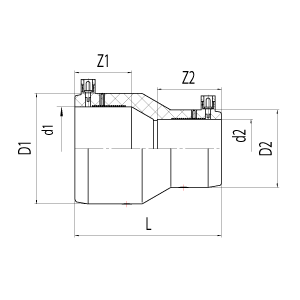

Spec.DN d1 x d2	D1	D2	Z2	Z1	L
40 x 32	55	46	45	40	90
50 x 32	66	46	50	40	112
50 x 40	66	55	50	49	115
63 x 32	82	46	51.5	44	131
63 x 40	82	55	57	49	133.5
63 x 50	82	66	57	50	123.5
75 x 63	98	82	60	63	142
90 x 63	117	82	62	63	155
110 x 63	142	82	72	60	177
110 x 90	142	117	72	65	180
160 x 90	203	117	90	65	220
160 x 110	203	142	90	72	216
160 x 125	203	164	90	80	201
180 x 90	226	117	98	65	248
180 x 110	226	142	98	72	243
180 x 125	226	164	98	80	229
180 x 160	226	203	98	90	210
200 x 110	251	142	100	72	254
200 x 125	251	164	100	80	247
200 x 160	251	203	100	90	227
200 x 180	251	226	100	98	218
All unit measurement are based on (mm)

Welding Voltage

40v

Pin Connection Diameter

4.0mm
