PE Electro Fusion Fitting |
 |

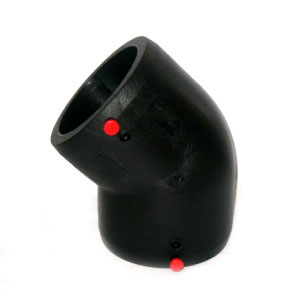

Elbow 45° (PE Electro Fusion Fitting) |

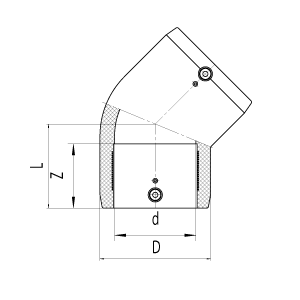

| Spec.DN d |
D | Z | L |
|---|---|---|---|
| 63 | 82 | 58 | 73 |
| 75 | 98 | 63 | 86.5 |
| 90 | 117 | 68 | 89 |
| 110 | 142 | 72 | 100 |
| 125 | 166 | 78 | 115 |
| 160 | 203 | 90 | 128 |
| 180 | 223 | 95 | 142 |
| 200 | 250 | 103 | 152 |
| All unit measurement are based on (mm) | |||
| Material | : | PE80 |
| Pressure | : | 1.25 Mpa (Water) 0.8 Mpa (Gas) |
| Material | : | PE100 |
| Pressure | : | 1.6 Mpa (Water) 1.0 Mpa (Gas) |
| Welding Voltage | : | 40v |
| Pin Connection Diameter | : | 4.0mm |
