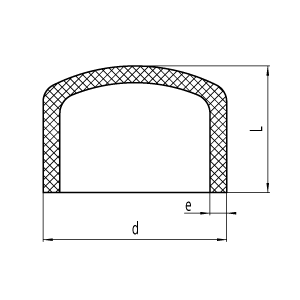

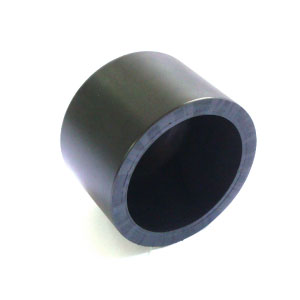

End Cap (PE Thermoweld Fitting)

Spec.DN
d		 L e SDR11 SDR17
63 67 5.8
75 71 6.8
90 80 8.2
110 91 10
125 96 11.4
140 103 12.7
160 110 14.6
180 113 16.4
200 117 18.2
225 124 20.5
250 140 22.7
280 148 25.5
315 162 28.6
355 80 21.1
400 85 23.7
450 85 26.7
500 90 29.7
560 90 33.2
630 95 37.4
All unit measurement are based on (mm)
All thickness are based on SDR11.
For other thickness, please refer to this page.
Material : PE80
Pressure : 1.25 Mpa (Water)
0.8 Mpa (Gas)
Connection : Butt Welding
Material : PE100
Pressure : 1.6 Mpa (Water)
1.0 Mpa (Gas)
Connection : Butt Welding
