	FIMAS Fabricated Polyethylene Fitting

	Elbow 30°, 45°, 60° and 90°

	Tee 90°, Equal

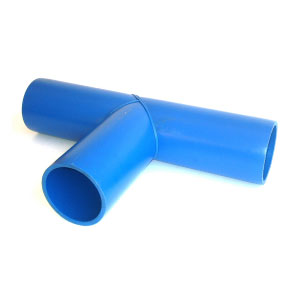

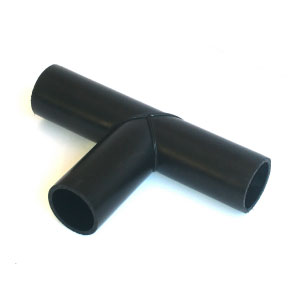

Tee 90°, Equal (PE Fabricated Fitting)

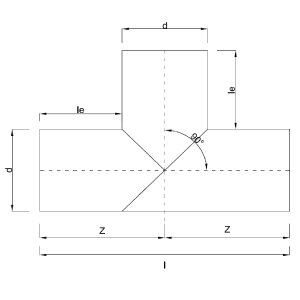

d(mm)	le(mm)
		I	Z
		mm(min)
110	150	410	205
125		430	215
140		440	220
160		460	230
180		480	240
200		500	250
225		530	265
250	250	750	375
280	250	780	390
315	300	920	460
355		960	480
400		1000	500
450		1050	525
500	350	1200	600
560		1260	630
630		1330	665
710		1410	705
800		1500	750
900	400	1700	850
1000		1800	900
1200		2000	1000
