	FIMAS Fabricated Polyethylene Fitting

	Elbow 30°, 45°, 60° and 90°

	Tee 90°, Equal

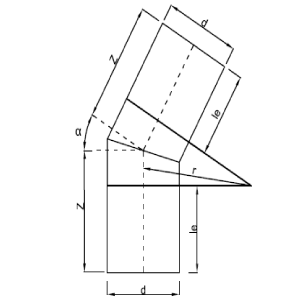

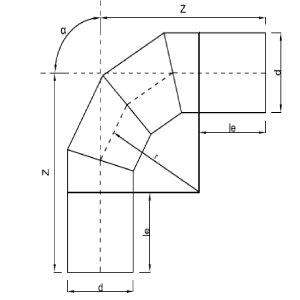

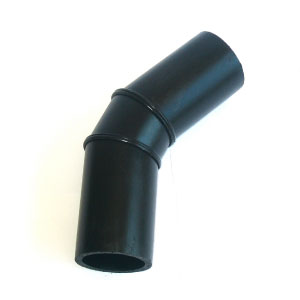

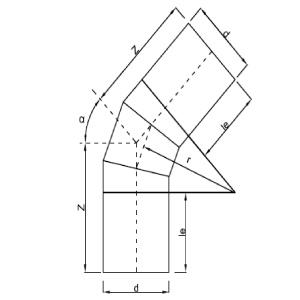

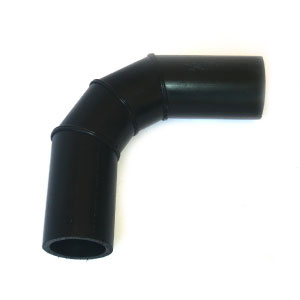

Elbow 30°, 45° 60° and 90° (PE Fabricated Fitting)

d(mm)	le(mm)	r(1.5 x OD) (mm)
			α
			±2
			Zmm(min.)
			90°	60°	45°	30°
110	150	165	315	245	218	194
125		188	338	258	228	200
140		210	360	271	237	206
160		240	390	288	249	214
180		270	420	305	262	222
200		300	450	323	274	230
225		338	488	345	290	241
250	250	375	625	466	412	350
280	250	420	670	492	424	362
315	300	473	773	576	498	428
355		533	833	608	520	443
400		600	900	646	548	461
450		675	975	689	580	481
500	350	750	1100	783	665	551
560		840	1190	835	698	575
630		945	1295	896	741	603
710		1065	1415	965	792	636
800		1200	1550	1043	847	672
900	400	1350	1750	1179	960	762
1000	400	1500	1900	1266	1022	802
