FIMAS PE Thermoweld Fitting > Elbow 45

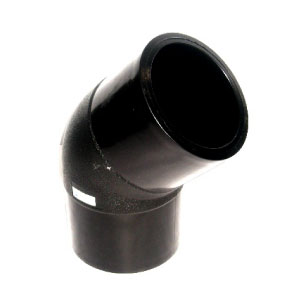

Elbow 45° (PE Thermoweld Fitting)

Spec.DN
d

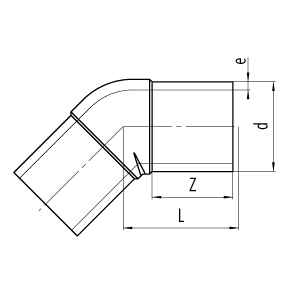

Z L e SDR11 SDR17
63 65 115 5.8
75 72 119 6.8
90 80 135 8.2
110 85 150 10
125 88 129 11.4
160 98 143 14.6
200 112 161.5 18.2
225 120 188 13.3
250 130 190 22.7
All unit measurement are based on (mm)
All thickness are based on SDR11.
For other thickness, please refer to this page.
Material : PE80
Pressure : 1.25 Mpa (Water)
0.8 Mpa (Gas)
Connection : Butt Welding
Material : PE100
Pressure : 1.6 Mpa (Water)
1.0 Mpa (Gas)
Connection : Butt Welding
